Monday, September 22, 2014

Intro to electrical Engineering

Charge: electron = 1.602 X 10^-19 coulombs (C)
Fundamental property of matter - like mass & length.
positive, or negative charge


Current - the rate at which charge flows through a given surface

Ampere current unit
 6.241×10^18 electrons (or one coulomb) per second = one ampere

Voltage = electrical potential difference between two points

 units = volts =  joules / coulomb

Voltage = the work done per unit charge against a static electric field to move the charge between two points.

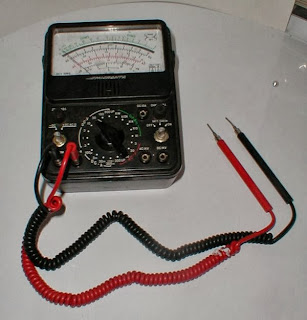

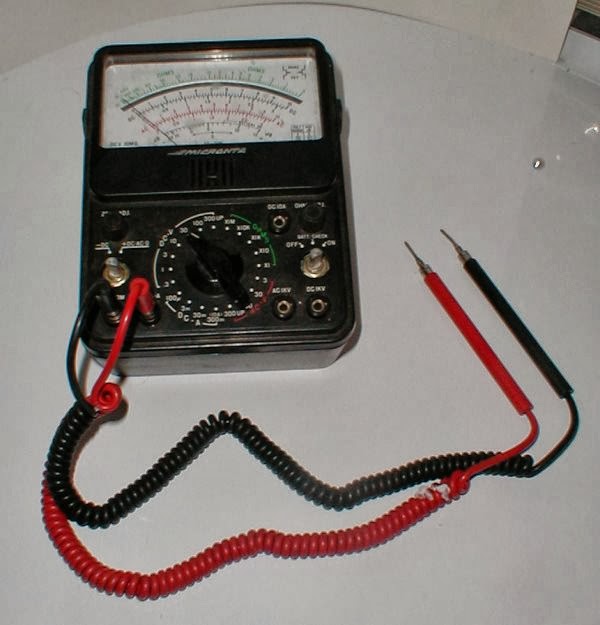

A voltmeter can be used to measure the voltage (or potential difference) between two points in a system; usually a common reference potential such as the ground of the system is used as one of the points.

Conductor - material that permits the flow of electricity




Resistor - resists the flow of electricity



Ohm (symbol: Ω) is the SI unit of electrical resistance


1 Ohm = the resistance between two points of a conductor when a constant potential difference of 1.0 volt, applied to these points, produces in the conductor a current of 1.0 ampere


Ohm's Law:  V = iR

Voltage = Current * resistance



Kirchoff's current law - Conservation of charge



The current entering any point = the current leaving the point
 i2 + i3 = i1 + i4



Kirchoff's voltage law - Conservation of energy
The sum of all the voltages around the loop= zero
 v1 + v2 + v3 - v4 = 0

 ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
 Resistors in series  -









~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

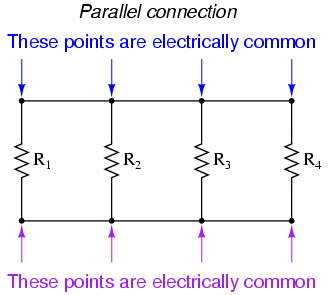

Resistors in Parallel



















Data Acquisition & Control
Data Acquisition -
take data, like measuring pressure, force, temperature, etc.  Writing a number down to represent a physical quantity.


Control - Use electrical outputs to control a physical property (like Temperature, or pressure) in a system.

Thermistor -

A thermistor is a type of resistor whose resistance varies with Temperature

Assuming, as a first-order approximation, that the relationship between resistance and temperature is linear, then:
\Delta R=k\Delta T \,
where
\Delta R = change in resistance
\Delta T = change in temperature
k = first-order temperature coefficient of resistance


 Strain gauge: R varies with Strain
(wires get thinner and longer with strain, this increases resistance)





Analog Information
- the actual physical voltage that varies proportionately with a physical property such as temperature, or pressure, or sound.  Analog signals are smooth, with infinite resolution - not pixilated.

Digital information - the number that shows up on your computer screen to represent the physical voltage.  The number on your screen is "pixilated", it does not exactly match the physical entity you are trying to measure.

Analog to Digital Converter - ADC -
Analog-to-digital converter (ADC) is a device which can convert the actual analogue voltage into digital numbers on a multimeter or on a computer.



https://www.youtube.com/watch?v=VBDoT8o4q00

Bits
- How a computer stores information.

A single bit can be either a 0 or a 1

ADC has n-bit resolution (8 bit, 12 bit, 16 bit, 24 bits etc.) higher-resolution ADC = a smaller step size
Step size = the smallest change between digital numbers



Example: 8 bits, representing 0-5V.
the range is divided into 2^8=256 steps (from 0 – 255)
Step size = 5/(2^N-1) = 5/255 = 0.01961V or 19.1mV


 ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
